JBL PRX710 10" 2-Way Self-Powered Sound Reinforcement Sys (Pair)

PRX710

10" 2-Way Self-Powered Sound Reinforcement Sys (Pair)

PRX710 is a compact and ultra-lightweight speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size.

FEATURES

• 133 dB peak SPL
• 10" low-frequency driver for low distortion and higher SPL
• 1.5" diameter next-generation JBL neodymium compression driver
• JBL designed a waveguide for accurate coverage
• Efficient Class-D amplifier technology
• Normal and Boost user-selectable EQ presets
• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
• Line level and direct microphone input capability
• Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
• Integrated 36 mm pole mount socket
• Integrated handle with injection molded backing cup for easy transport
• Integrated M10 suspension points for easy setup
• Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour-proven DuraFlex™finish.
• Cloth-backed, dent-resistant 16 gauge steel grilles

APPLICATIONS

The PRX710 is the most compact and versatile speaker in the PRX700 Series. Designed to deliver maximum performance for its weight and size as a front-of-house main PA. Two user-selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX712 is a perfect match with a PRX700 Series subwoofer, offering a high-performance self-powered sub/sat system.

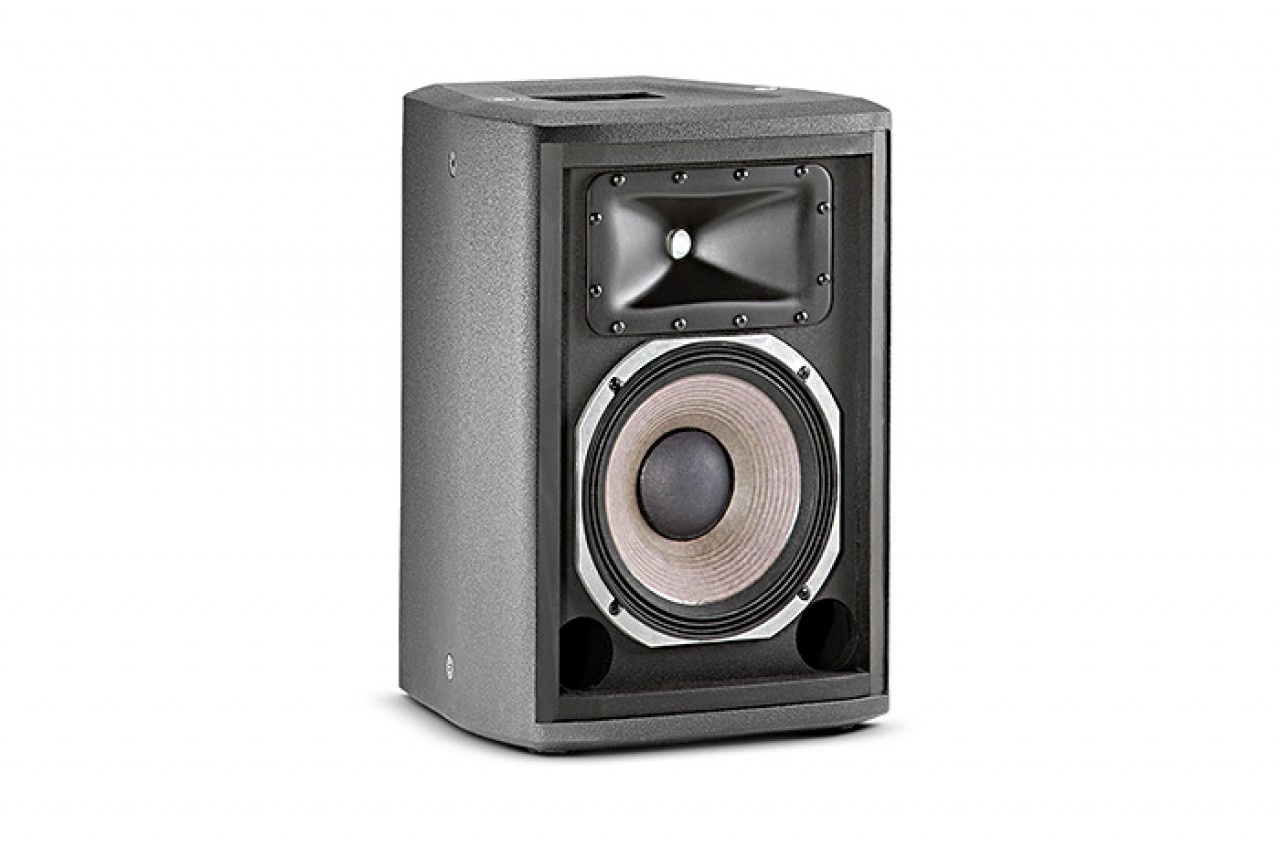

The PRX710 is comprised of a 10" woofer, a 2408H-2, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 100° by 60° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user-selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, lightweight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour-proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield strength of 1000 lbs. each.

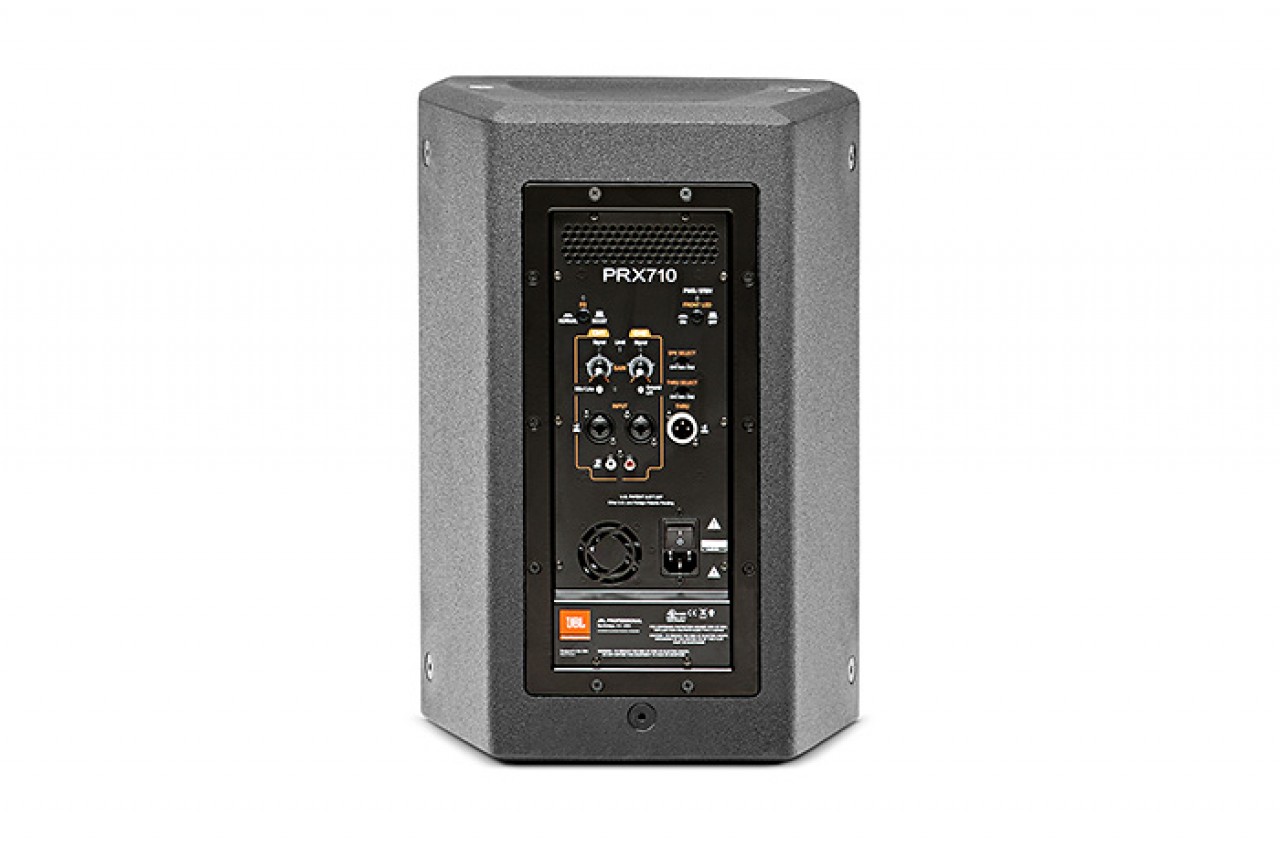

The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
