M-1500D 2x1500 Watts Power Amp HH M-Series power amplifiers are high-power, 2U rack amplifiers designed to provide maximum performance for demanding applications. Three models are available all featuring heavy-duty low-noise toroidal power ...
Availability: 2-3 Days
- Brand: HH Electronics

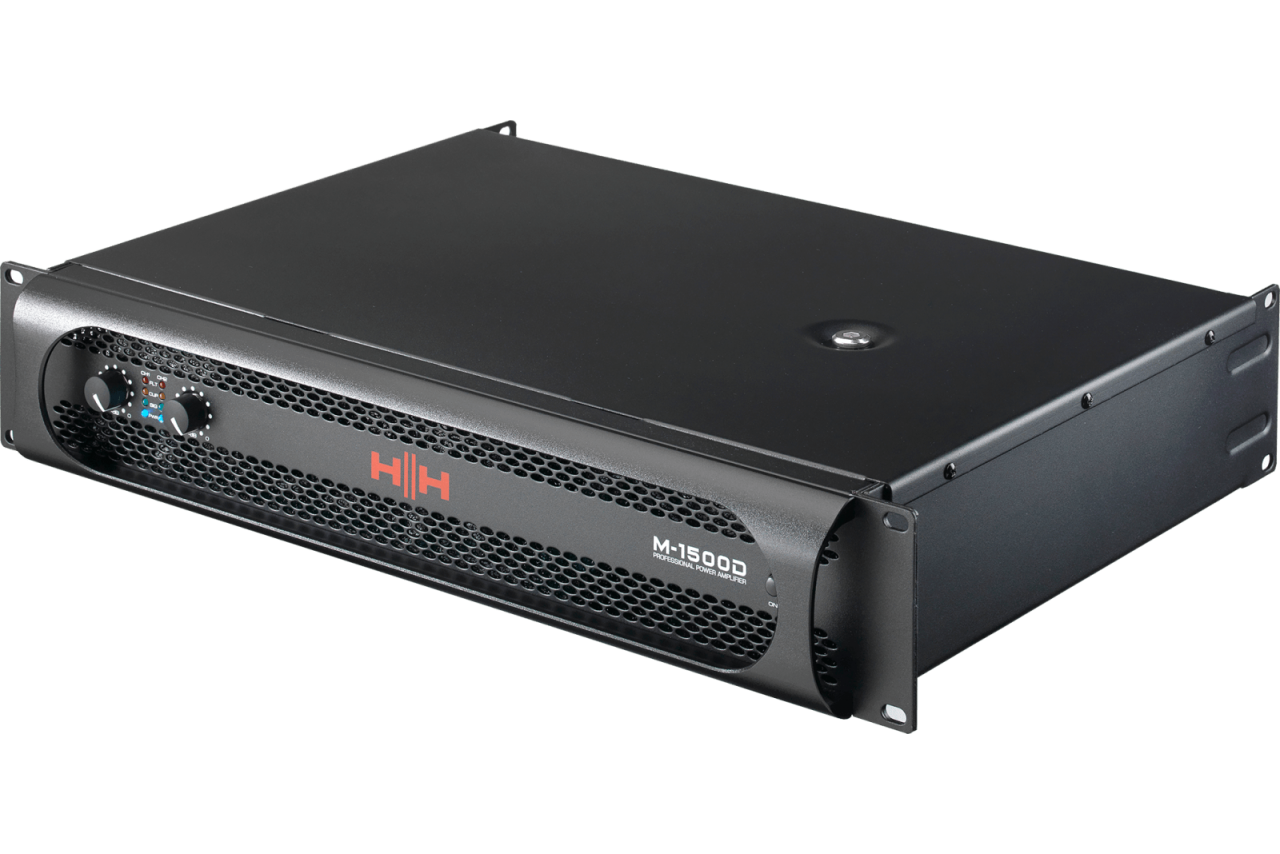

M-1500D
2x1500 Watts Power Amp
HH M-Series power amplifiers are high-power, 2U rack amplifiers designed to provide maximum performance for demanding applications. Three models are available all featuring heavy-duty low-noise toroidal power supplies and rugged construction. Suitable for anywhere you need high fidelity, high power amplification.
Featuring high-quality balanced XLR inputs, user-selectable input sensitivity, SpeakON(®) Connectors, binding post outputs, status indicators, Twin volume controls, and comprehensive protection circuits. HH has over five decades of experience designing quality power amplifiers, and indeed was one of the pioneers in this area.
| Key Features |
|---|
| - Two Channel Audio Power Amplifier. |
| - High Quality Heavy Duty, Toroidal Power supply. |
| - Heavy Gauge 2U chassis. |
| - Ultra reliable linear power stage. |
| - Comprehensive Protection System. |
| M-1500D Specifications | |
|---|---|
| Output Power RMS : 8 Ohm Stereo | 2x1250W |
| Output Power RMS : 4 Ohm Stereo | 2x1500W |
| Output Power Bridge RMS : 8 Ohm Mono | 2900W |
| Direct Drive High Impedance | 70/100V |
| Frequency response | 20Hz - 20KHz (+0, -1dB) |
| THD% | ?0.5% 20Hz-20kHz |
| IMD | =/<0.35% |
| S/N | ?100dB |
| Damping Factor | >200 (8 ohms, 10Hz-400Hz) |
| Slew Rate | ?20V/µS |
| Crosstalk (1kHz/20kHz) | -75dB/-58dB |
| Input Sensitivity | 0.775V/1.4V |
| Input Impedance (Bal/Unbal) | 20K?/10K? |
| Voltage Gain (8?) | 37dB |
| Cooling | Variable Speed Fan, Air flow from front to rear |
| Protection | Soft start, VHF, RF, short circuit, over load, clip limit, over heat |
| PSU Type | 220-240V~ 10A Removeable IEC Power Cord C14 (3x1.5mm) / 100-130V~ 15A Removeable IEC Power Cord C20 (3x14AWG / 2mm) |
| Amplifier Type | Class H High Performance Professional linear design |
| Rear Panel | |
|---|---|
| Input Connector | Balanced XLR-F |
| Output Connector | NL4 SpeakON® per channel, 4mm Binding posts with safety cover, Balanced XLR-M link out |
| Power Connector | 220-240V~ 10A Removeable IEC Power Cord C14 (3x1.5mm 2) 100-130V~ 15A Removeable IEC Power Cord C20 (3x14AWG / 2mm 2 ) |
| Power Consumption | 1250W Typical, 5700W Maximum |
| Other | Input Sensitivity Switch, Bridge/Routing Mode Switch |
| Front Panel | |
|---|---|
| Controls | Volume Control knobs (per channel), Power switch |
| Indicators | Signal/Clip/Protection/Power leds |
| Shipping Dimensions / Weight | |
|---|---|
| Unit dimensions (HWD) | 88 x 482 x 297mm, 3.5 x 3.5 x 11.7" |
| Unit weight | 19.2Kg/pc, 42.3 lbs/pc |
| Carton dimensions (HWD) | 160 x 580 x 540mm, 6.3 x 22.8 x 21.3" |
| Gross Weight | 21.5Kg/pc, 47.4 lbs/pc |
