HH Electronics SP26 Loudspeaker Management System

₱43,900.00

HH Electronics SP26 Loudspeaker Management System2-In/6-Out DSP Speaker Processor | EQ, Delay, Limiter, Crossover Key HighlightsProfessional 2-in / 6-out loudspeaker management systemHigh-quality 24-bit DSP processingAdjustable EQ, crossover, dela...

Availability: 2-3 Days

Brand: HH Electronics

DESCRIPTION
SPECIFICATIONS

2-In/6-Out DSP Speaker Processor | EQ, Delay, Limiter, Crossover

Key Highlights

Professional 2-in / 6-out loudspeaker management system
High-quality 24-bit DSP processing
Adjustable EQ, crossover, delay, and limiter
LCD display for easy system setup
USB interface for PC control
Ideal for live sound and installed audio systems
Ensures maximum speaker performance and protection
Durable, reliable 1U rackmount design

The HH Electronics SP26 is a cutting-edge Loudspeaker Management System designed to give audio professionals full control over their sound setup. With its 2 inputs and 6 outputs, it’s perfect for configuring multi-speaker systems in live sound and permanent installations.

Equipped with 24-bit digital signal processing, the SP26 delivers crystal-clear audio and powerful system shaping tools including crossover control, EQ, delay, and limiting. These features allow you to optimize your speaker response, fine-tune room acoustics, and protect your audio system from overload or distortion.

Its user-friendly LCD interface and USB PC control make configuration easy and intuitive. Built for reliability with a strong 1U rackmount chassis, the SP26 is essential for audio technicians, rental companies, venues, and sound engineers who demand precision and consistency.

Features

2 x balanced inputs
6 x balanced outputs for multi-speaker setup
24-bit DSP engine for high-resolution audio
Parametric EQ on inputs and outputs
Versatile crossover settings (Butterworth, Bessel, Linkwitz-Riley)
Adjustable input and output gain
Limiters for speaker protection
Delay control for time alignment

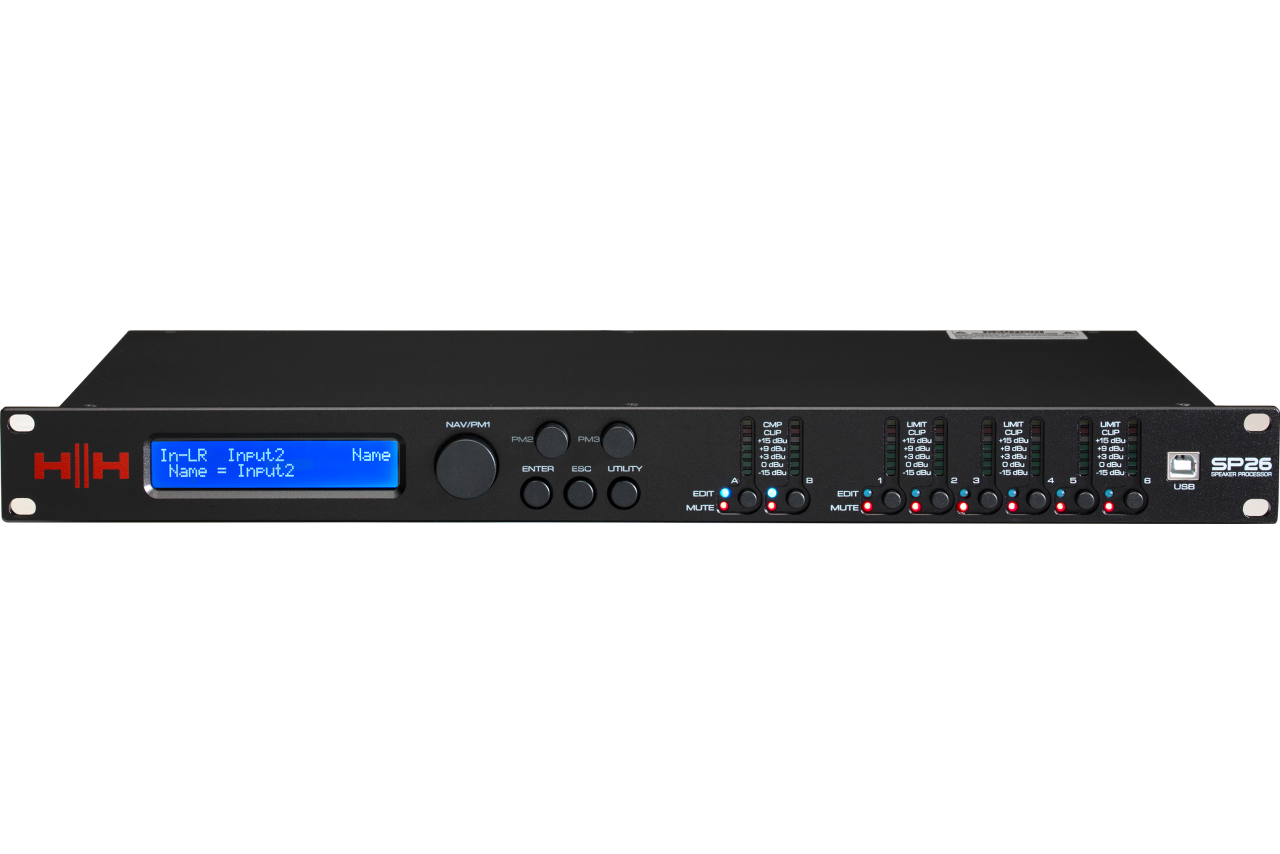

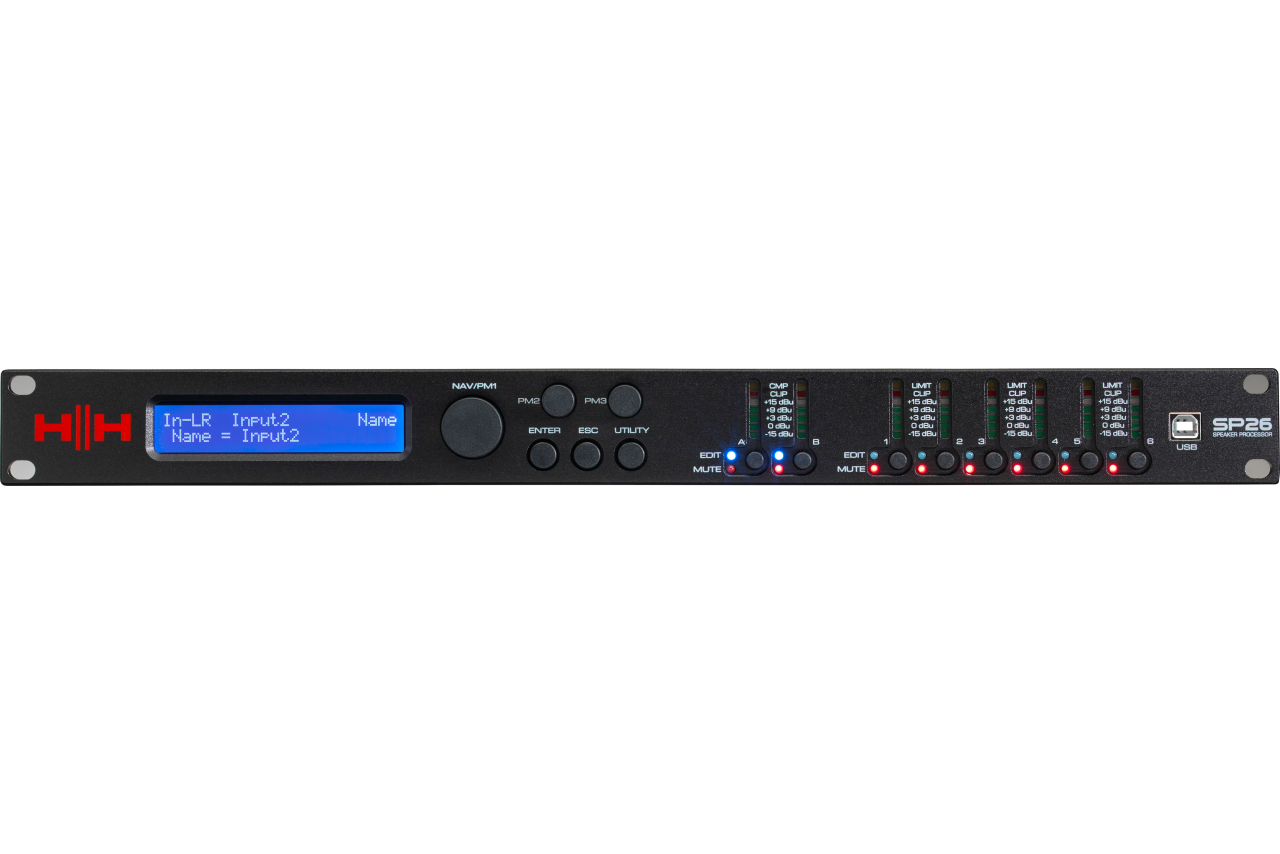

Large LCD screen for easy navigation

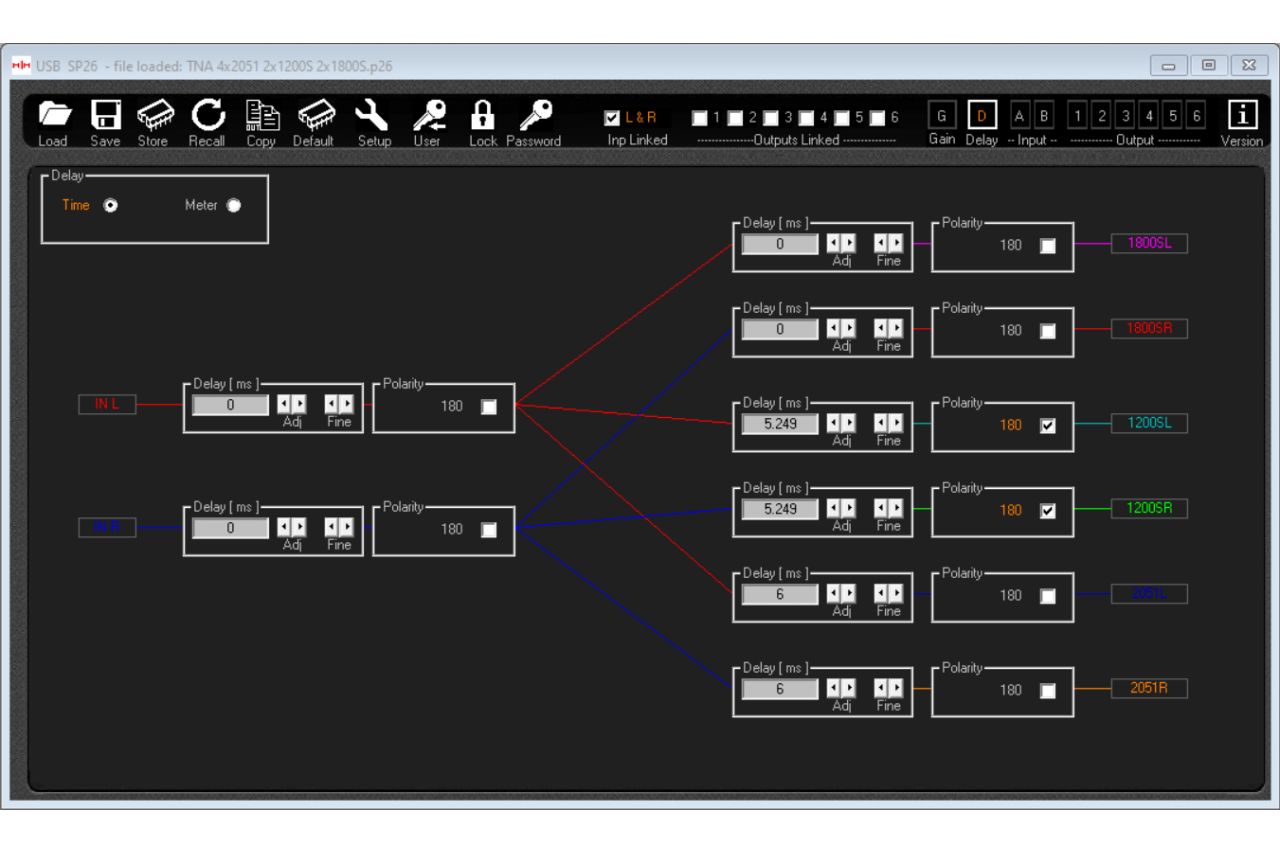

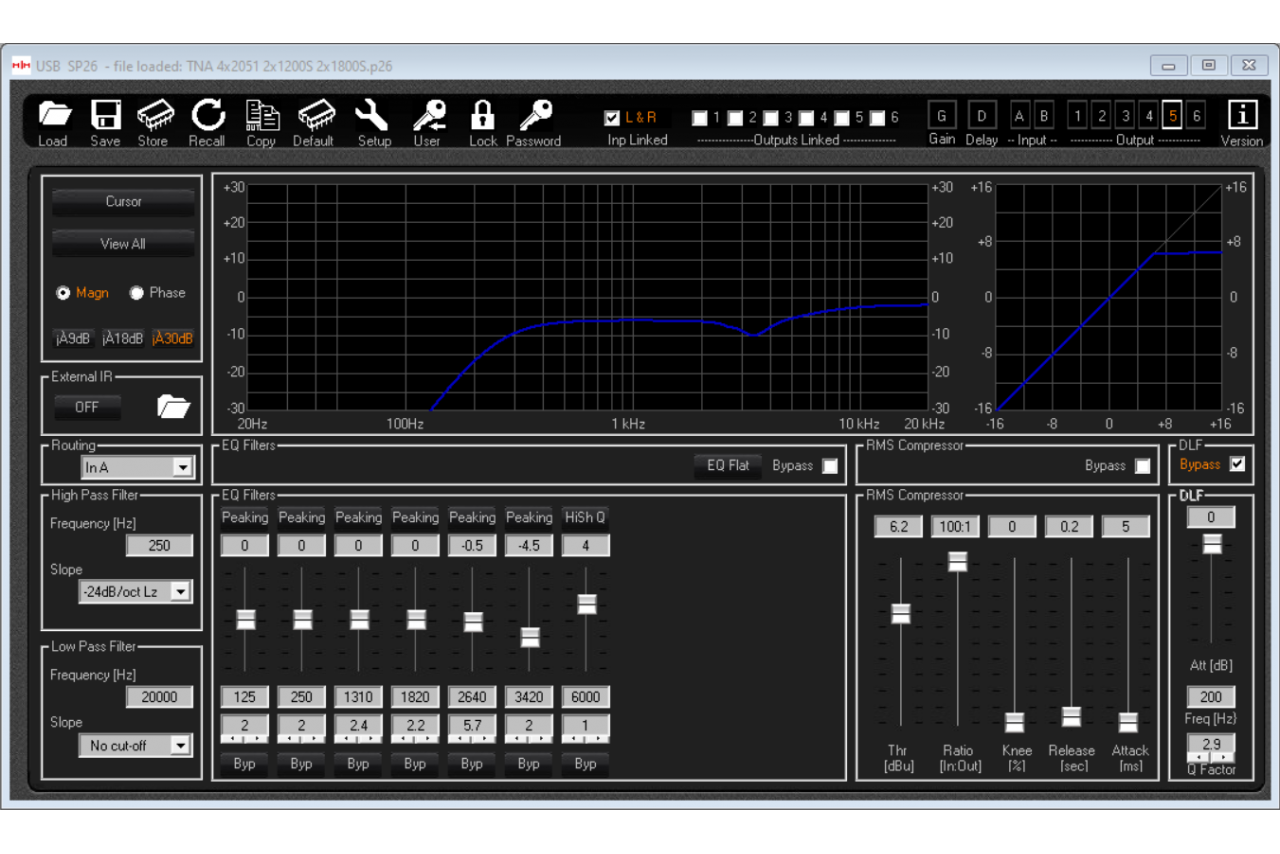

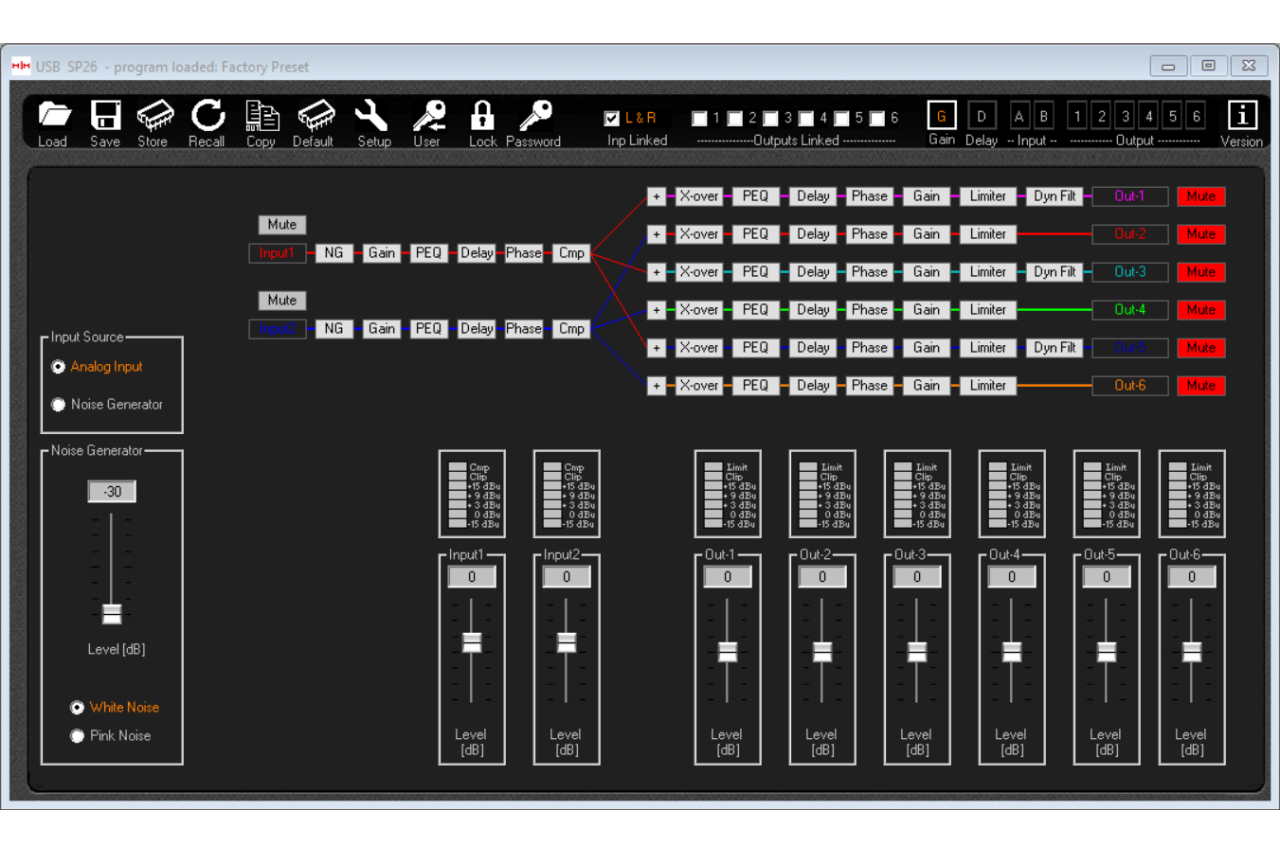

USB connectivity for software control
Rugged 1U rackmount metal housing.

Benefits

Maximum System Control: Set crossover, EQ, limiter, and delay for perfect sound alignment.
Improved Audio Quality: 24-bit DSP ensures clean, accurate signal processing.
Speaker Protection: Built-in limiters keep your speakers safe during high-volume use.
Flexible Output Routing: Drive subwoofers, midrange cabinets, and high-frequency drivers independently.
Easy System Setup: LCD and PC control make adjustments fast and intuitive.
Professional Reliability: Perfect for touring, venues, and permanent installations.

Ideal For

Live sound engineers
Churches & worship environments
Concert venues & bars
Audio rental companies
Mobile DJs
Auditoriums & gymnasiums
Theaters & performance halls
Multi-speaker installed systems

Upgrade your sound system with precision control and professional-grade audio processing.

Bring out the full potential of your loudspeakers with the HH Electronics SP26 — reliable, powerful, and built for perfect sound every time.

Order now and experience next-level loudspeaker management!

SPECIFICATIONS
Type :	Loudspeaker Management System

Audio

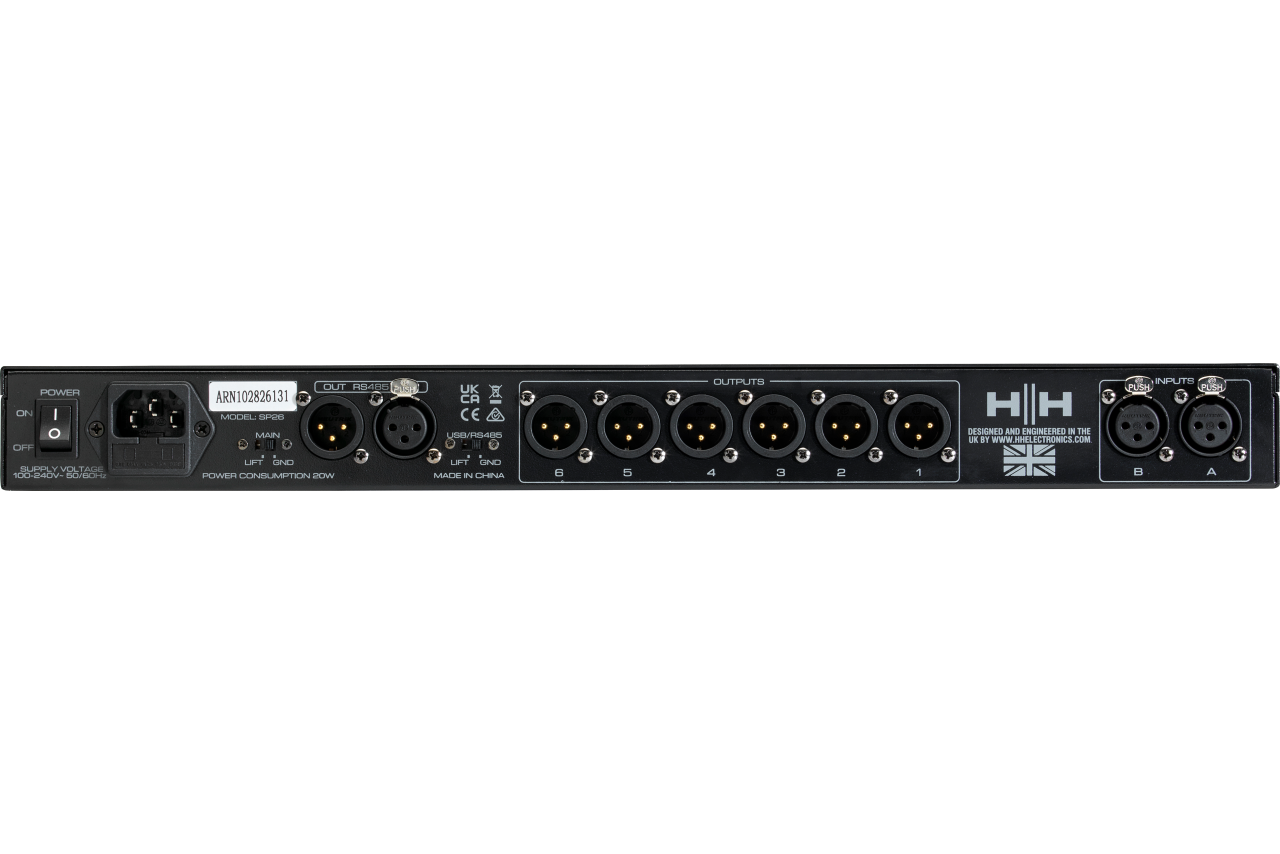

Inputs :	Two Electronically Balanced XLR Inputs
Outputs :	Six Electronically Balanced XLR Outputs
Minimum Load :	150 Ohms
THD%N :	0.001% at 1kHz 0dBu
S/N :	>106dBA
Frequency Response :	20Hz-20kHz; -0.5dBy at 20Hz and 20kHz
AD/DA Converters :	24bit, 96kHz (48kHz on models pre-October 2023)

General
Presets :	48 user presets (16 pre-loaded TNA examples, may be erased)
Other :	Audio Ground Lift switch, USB/RS485 ground lift switch
Remote :	RS485 in/out XLR connectors for remote monitoring

DSP
DSP Engine :	DSP, 24bit (data) x 96 bit (coeff.)
DSP Resolution :	24bit (data) x 24 bit (coeff.), 54 bit accregisters. 96 bit precision on intermediate processing data
Parametric Equalisation :	11 filters per input,7 filters per output
Filter Type :	Bell, Shelving
Filter Gain :	From -12dBu up to +12dBu by 0.5dBu resolution steps
Centre Frequency :	from 20Hz up to 20kHz with 1Hz resolution steps
Filter Q/BW :	Q from 0.4 up to 128
Input Gain :	From -12dB to +12dB by 0.1dBu resolution steps;
Output Gain :	From -18dB to +12dB by 0.1dBu resolution steps;
Crossover Section :	HPF/LPF Butterworth 6/12/18/24/36/48 dB per octave. Bessel 12/24 dB per octave. Linkwitz-Riley 12/24/36/48 dB per octave
Internal Noise Generator :	White/ Pink Noise; Level from -30dBu to 0dBu
Input Noise Gate :	Threshold from -90dBu up to -60dBu. Attack time from 1ms up to 1000ms;Release time from 10ms up to 1000ms
Input RMS Compressor :	Threshold from -14dBu up to +16dBu and Bypass. Ratio 2:1~100:1; Knee: 0% ~ 100%. Attack time from 5ms up to 200ms;Release time from 0.1 sec up to 3 sec
Output RMS Compressor :	Threshold from -14dBu up to +16dBu and Bypass. Ration 2:1~100:1; Knee: 0% ~ 100%. Attack time from 5ms up to 200ms;Release time from 0.1 sec up to 3 sec
Output Peak Limiter Threshold :	from -14dBu up to +16dBu and Bypass. Attack time from 5ms up to 200ms;Release time from 0.1 sec up to 3 sec.
Dynamic Loudness Filter :	Input: Boost Filter from 0% to 100%;Frequency from 20Hz to 20kHz. Output(Only for output 1,3,5): Attenuation Filter from 0dBu to -6dBu;Frequency. 20Hz to 1kHz Q from 1 to 9.9 step 0.1
Delay :	900 ms 10.4us increment/decrement steps per input channel. 340 ms 10.4us increment/decrement steps per output channel
Residual Noise :	<-90dBu

Power Requirements
AC Power:	Universal voltage 100V-240V~ 50/60Hz, three pin IEC socket
AC Power Consumption:	<30W

Sizes
Unit dimensions (HWD):	44 x 483 x 229mm, 1.7" x 19" x 9"
Unit weight:	3.5Kg, 7.7 lbs
Single Carton dimensions (HWD):	9 x 53 x 30CM, 3.5" x 20.9" x 11.8" , 0.014 M3
Packed weight:	4.5Kg, 9.9 lbs
Master Carton dimensions (HWD):	5060109457957
EAN :	21.3Kg, 47 lbs
